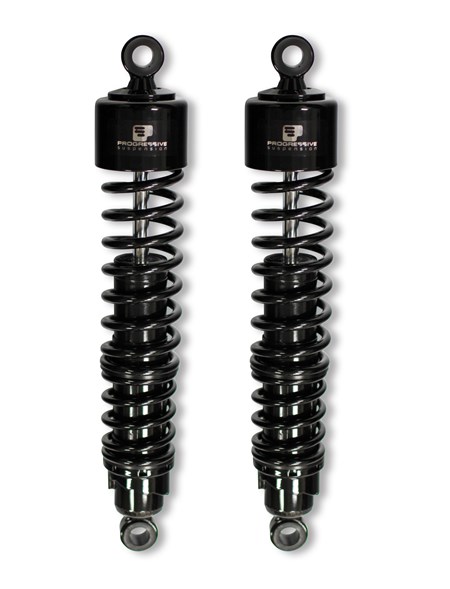

The 413 Series Shock is simple, durable and will be an improvement to your motorcycle's suspension performance for as long as you are riding it. A five-position cam style preload adjuster lets you dial in your ride whether you're a light rider or heavy hitter. Available in Chrome or Black in a progressive rate, Standard or Heavy-Duty for most applications.
Target Ride Length (in) :
13.25
Target Ride Length is the length of the selected shocks, installed, and as measured between the upper and lower shock mounts ***, when the full weight of the rider(s) & gear are on the bike and ready to ride. This is a fast and easy way to set your rear suspension at optimum Ride Sag (1/3 of total suspension travel)
With the shocks selected above installed and the full weight of the rider(s) & gear on the bike as it will be ridden, measure the distance between the upper and lower shock mounts (center to center)***. If your measurement is less than the indicated Target Ride Length, increase the spring pre-load** to raise the bike until you achieve the Target Ride Length. If your measurement is more than the indicated Target Ride Length, reduce the spring pre-load** to lower the bike until you achieve the Target Ride Length. Achieving the Target Ride Length in this manner sets the rear suspension ride sag for optimum performance and comfort.
**Air pressure for 416 Series shocks.
*** For Adjustable length shocks -Target ride lengths specified are with shock length adjustment set at the shortest length. If adjusting the shocks to a longer length, add the same amount to the target ride length. Example: If you lengthen the shocks by 0.38", be sure to add 0.38" to your target ride length.
